STM3942GDV2

3-9X42 USS Gen II/ Mil-Dot w/Micro Red Dot

Description

Description

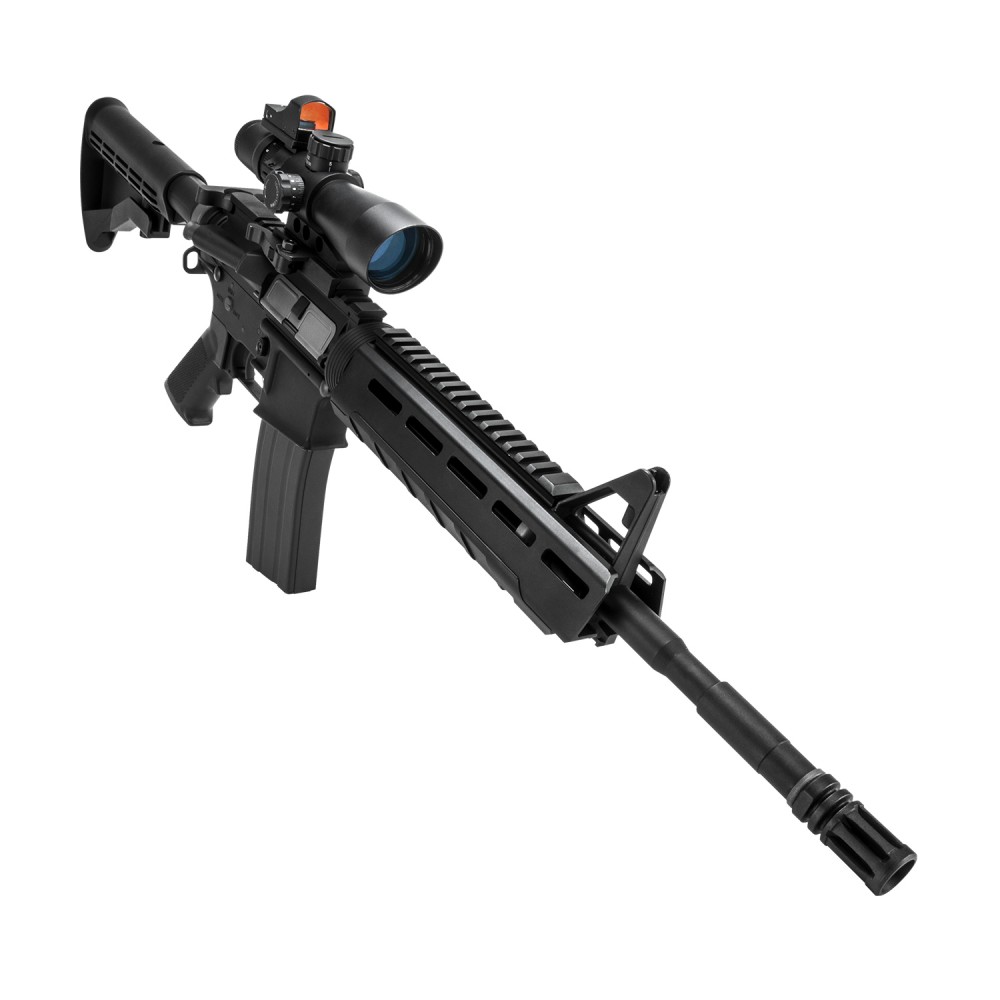

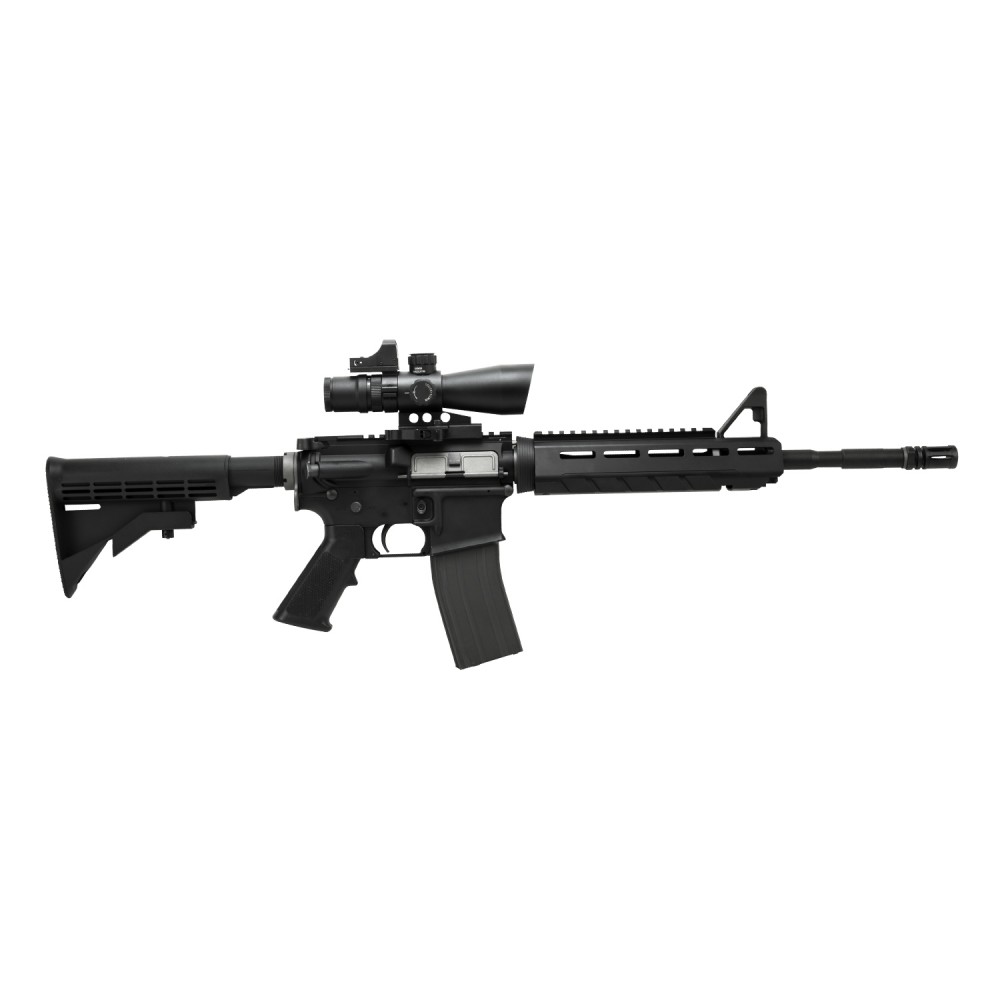

  • Improved: Scope Centerline height raised to AR15 1½” scope height and more room for low profile Rear BUIS
  • Blue & Green Color Illuminated reticle, with multiple brightness settings for each color
  • Improved: Lowered BDC Turret height, for lower mounting height for the Micro Dot Reflex Optic
  • Improved: Auto Locking Quick Release mount and a more compact QR Lever
  • The Ultimate Sighting System (USS) Gen II gives you all the Benefits of a Mark III Tactical 3-9X magnified Scope with the Advantage of a Micro Red Dot Reflex Optic for close range targets

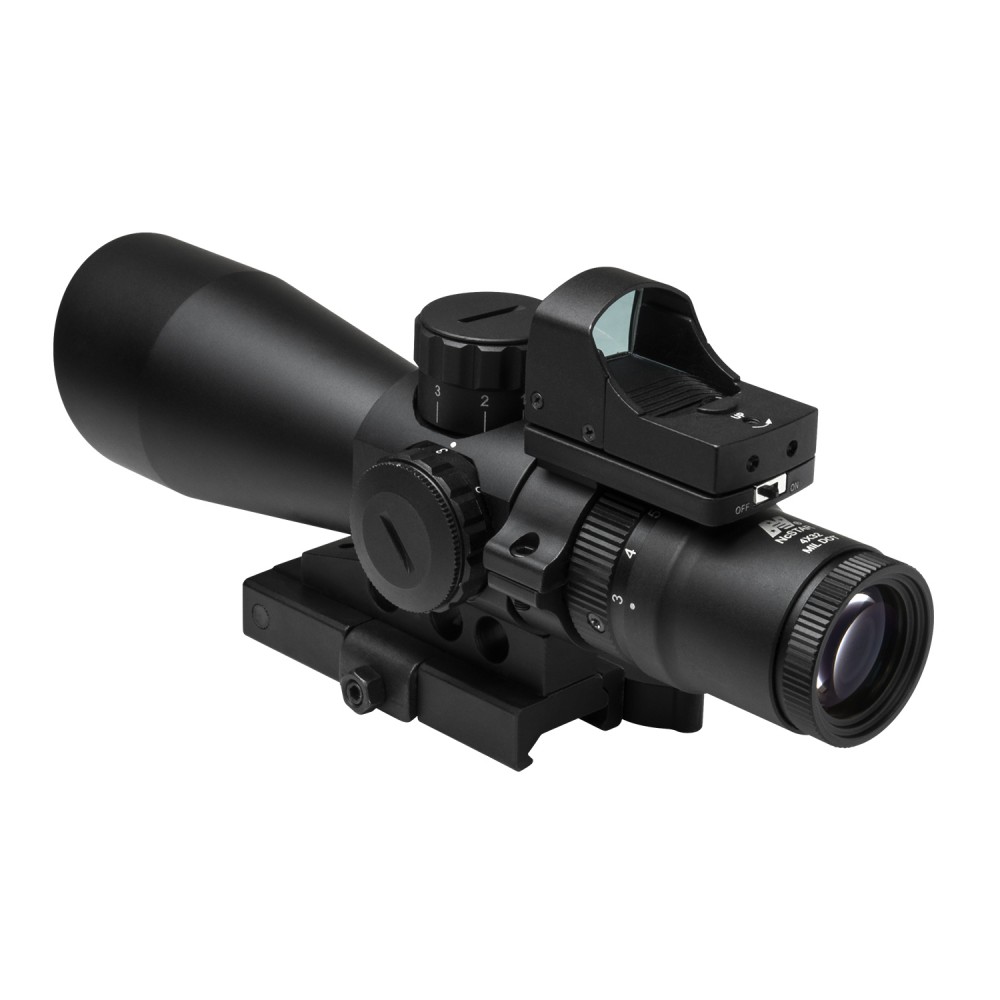

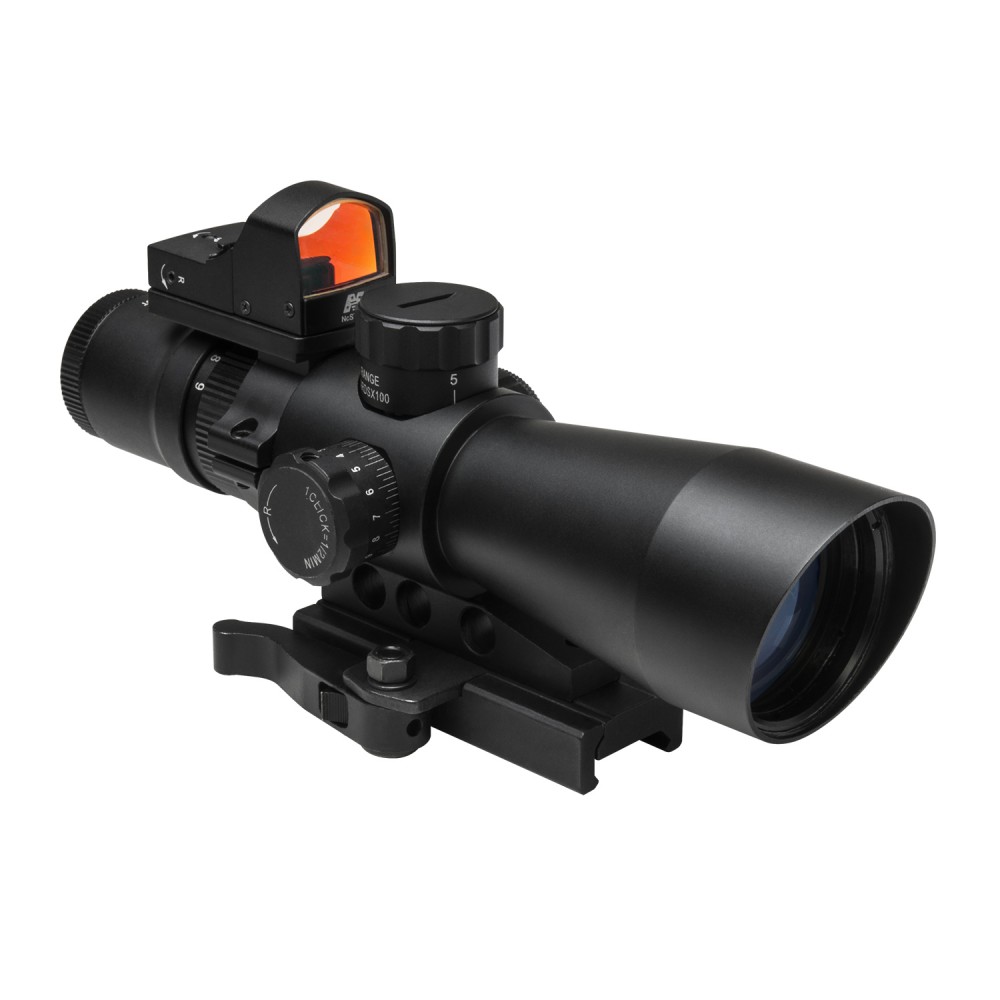

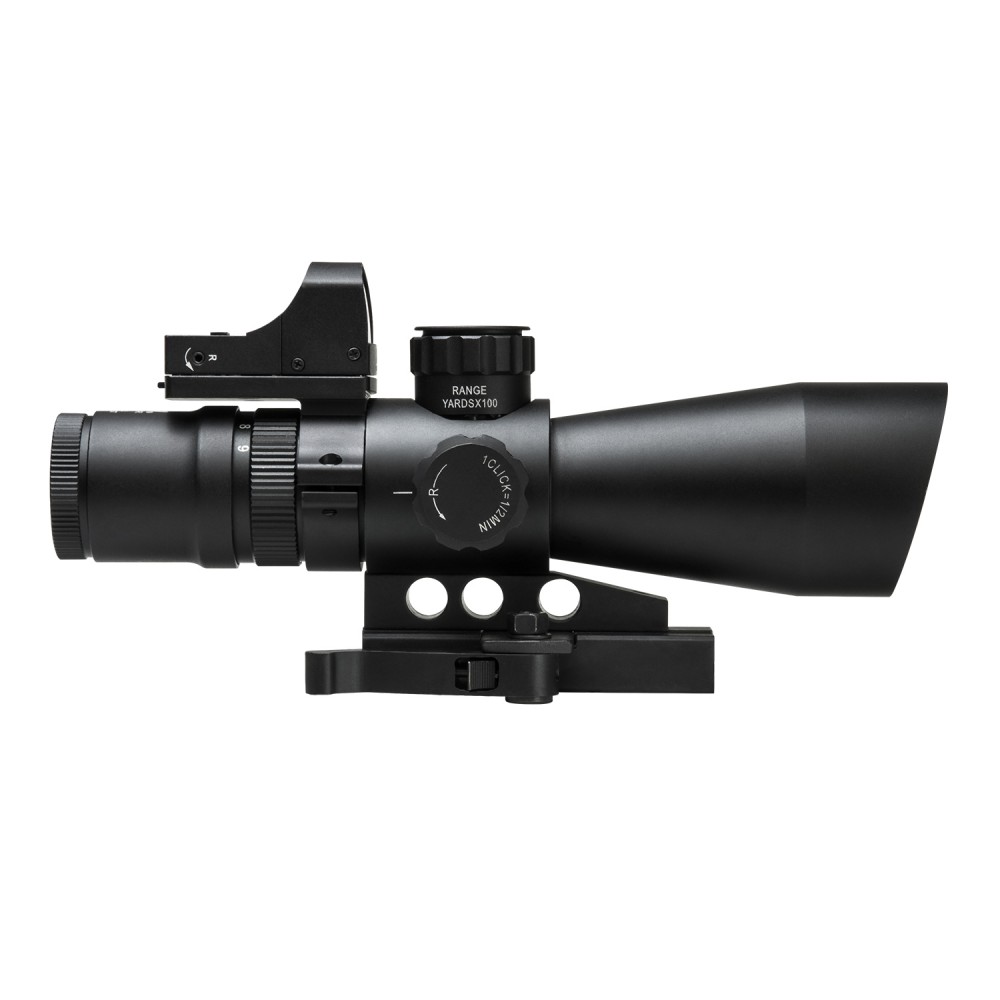

  • This Combo is comprised of a Mark III GEN II Tactical Scope with a Micro Dot Mount that mounts directly to the Ocular Lens Housing and a Red Micro Dot optic on top.
  • This is the perfect platform for the New DDAB Micro Red Dot Reflex Sight (also included in the USS)
  • 100-500 yard Bullet Drop Compensator (BDC) calibrated for M193 55gr. FMJ Mil-Spec ammo
  • Quick Focus Eyepiece
  • Fully Multi Coated Lenses
  • Integrated Slant Cut Sun Shade
  • Black Anodized exterior finish
  • Includes lens covers and batteries
  • DDAB is a Red Micro Dot optic with on/off switch.
  • Includes Micro Dot dust cover and batteries
  • International orders will not include batteries.

Specs & Models

Specs & Models

SCOPE RETICLE MIL-DOT (BLACK/ GREEN ILL./ BLUE ILL.)
MAGNIFICATION 3X – 9X
OBJECTIVE DIA. (mm) 42mm
FOV (FEET AT 100 YARDS) 36.8' - 12.0'
EYE RELIEF (in) 2.0”
EXIT PUPIL(mm) 14.0mm - 4.7mm
NET WEIGHT (oz) 19.1
LENGTH (in) 7.5”
CLICK VALUE 1/2 M.O.A.
LENS COATING GREEN
MICRO DOT RETICLE RED DOT (DDAB)
DOT SIZE 2 MOA
LENS COATING RUBY
WEIGHT 2.4 oz.
LENGTH 1.8"
